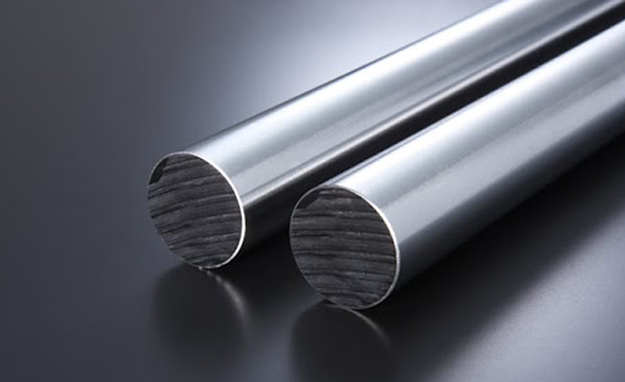

Cold drawn Bars
CD Bar (Cold Drawn Bar) outperforms HR (Hot Rolled) Bar in surface roughness, dimensional precision, straightness and roundness, and is extensively used in parts for automobiles, industrial machines, and home appliances. In order to provide high quality products, we operate 2 Roll and 4 Roll Straighteners, Spinner, Chamfering Machine, and ECT, and supply CTL Bar cut to the length required by customers.
Specialized Products
Product and Feature

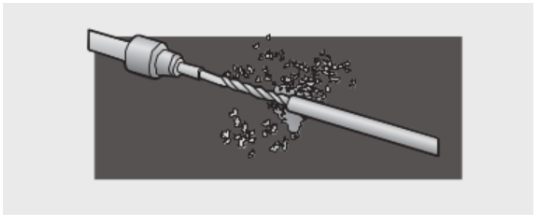

Free Cutting Steel
Free Cutting Steel refers to products with improved machinability for turning operations. We supply not only lead-added and sulphur-added Free Cutting Steel but also Pb-free Free Cutting Steel to meet the regulation of lead(Pb) content. Free Cutting Steel is used in OA shafts, home appliances, and braking systems, etc.
STS Bar (Stainless Steel Bar)
This is used for shafts, bolts, and nuts, which require excellent corrosion resistance and attractive surfaces. We supply Ni-Cr-based 300 series and Cr-based 400 series.
Normalized Bar
Normalizing is a type of heat treatment to obtain even structure and properties. It ensures both even properties following quenching and tempering and high-quality products by minimizing deformation due to heat treatment. This product is mainly used in automotive steering system parts , etc.

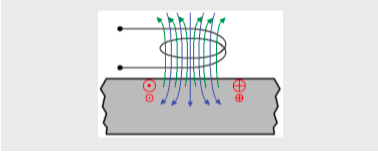

Defect Free Product
This is a special CD Bar with a surface defect guarantee of 0.1mm or less in depth, employing eddy current-based non-destructive inspection by using quality inspection equipment ECT. It is used in products that require superior surface quality including Rack Bar, Piston Rod for shock absorbers, and materials for hydraulic parts.

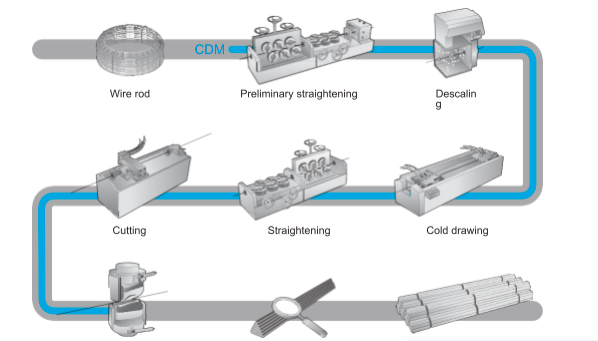

Precise straightening Inspection Bar packing
Representative process
CD W/R-CD-BP
RCD W/R-RA-CD-BP
SCD W/R-PC-SA-CD-BP
SWSPCD W/R-PC-SA-PC-WD-SA-PC-CD-BP
LWSCD W/R-LA-PC-WD-SA-CD-BP
W/R Wire Rod
CD Cold Drawing
PC Pickling & Coating
WD Wire Drawing
LA Low Temperature Annealing
RA Regular Annealing
SA Spheroidized Annealing
BP Bar Packing
| Category | AISI(SAE) | JIS | Usage |
|---|---|---|---|
| Carbon steel | 1010~1060, 10B38 | CH6A~CH45K, S25C, S35C, S45C, S50C, POSMA45R |
Motor Shaft / Various kinds of shafts /Piston Rods / RACK Bars (for the steering area) |
| Manganese steel | 1541 | SMn443 | Axle Shaft |
| Chrome steel | 5115, 5120 | SCr415, SCr420 | Various kinds of shafts and parts |
| Chrome-molybdenum steel | 4115, 4135, 4140 | SCM415, SCM435, SCM440 | Various kinds of shafts and parts |
| Bearing steel | 52100 | SUJ2 | Bearing, Liner Motion Shaft, Wrench Set |
| Free machining steel |
1213, 12L14 | SUM22, SUM24L | O.A. shafts / Sleeve shafts / Electronics, braking systems |
STS Bars
| Category | Standard | Usage | ||||
|---|---|---|---|---|---|---|
| KS | JIS | ASTM | DIN | |||
| Austenite family |
303 | SUS303 SUS303C |
SUS303 SUS303C |
TP303 | 1.4305 | Materials for O.A. shafts (printers, copiers), nuts, bolts and brushing automotive |
| 304 | SUS304 SUS304L SUS304HC SUS304M |
SUS304 SUS304L SUS304HC SUS304M |
TP304 TP304l 304/304l |
1.4031 1.4306 |
Materials for nuts and bolts for construction materials and ladders, tableware, and automotive parts |
|
| 316 | SUS316 SUS316L |
SUS316 SUS316L |
TP316 TP316l 316/316l |
1.4401 1.4404 |
Medical supplies, coastal building exterior decoration, chemical industry systems, paper-making industry |
|
| Martensite family |
410 | STS410 | SUS410 | TP410 | 1.4006 | For motor shafts, bolts, nuts and annealing |
| 416 | STS416 | SUS416 | TP416 | Materials for automotive parts and electronics | ||
| 420 | STS420J1 STS420J2 STS420F |
SUS420J1 SUS420J2 SUS420F |
1.4119 1.4021 |
Various kinds of shafts, medical devices, springs, tableware, knives, pins |
||
| Ferrite family |
430 | STS430 STS430F |
SUS430 SUS430F |
1.4104 | Automotive parts, electronic parts for various kinds of tanks, rivets |
|
