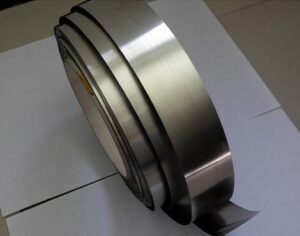

Stainless Steel Precision Strips
Our portfolio of precision solutions includes thicknesses ranging from 0.060 mm to 2.50 mm and widths from 3 mm to 700 mm, high-specification surface finishes and mechanical characteristics, and quenched martensitic – amongst others.
Production Capability
| Classification | Scope | ||||
| Grade | 301, 304, 304L, 304LL, 304J1, 309Si, 310S, 316L, 316Ti, 321, 420J2, 430, 409L |
||||
| Surface Finish | 2D | 2B | BA, DF. BF,SF,HL | 1/4H,1/2H,3/4H,H,EH | |
| Size | Thickness | 0.4 ~ 2.4 | 0.4 ~ 1.5 | 0.08 ~ 1.2 | 0.08 ~ 2.0 |
| Width | 5.0 ~ 500 | 5.0 ~ 500 | 5.0 ~ 500 | 5.0 ~ 500 | |
Edge Profile
| Classification | Explanation |
| Mill Edge | Edges as produced, not sheared. No width tolerance applied. |
| Slit Edge | Edges sheared in the width demanded by a customer. |
| Deburred Edge | Edges sheared and trimmed roughly. |
| Round Edge | Edges sheared and trimmed with their endings rounded. |
Tempered & Surface Finish
* Stainless products are generally classified according to the status of surface finish
|
4AM |
KS |
JIS |
ASTM |
EN |
Typical Ra |
Work & Surface Conditions |
Usage |
|
2D |
No.2D |
No.2D |
No.2D |
2D |
0.15 ~ 0.35 ㎛ |
Annealed and Pickled dull surface after cold rolling |
Common type of cold rolled products, Construction, Drawing |
|
2B |
No.2B |
No.2B |
No.2B |
2B |
0.06 ~ 0.2 ㎛ |
Skin pass rolled on 2D surface |
Common type of cold rolling products |
|
#4 |
No.4 |
No.4 |
No.4 |
2J |
0.2 ~ 0.7 ㎛ |
Surface grinded by 150~180 Mesh |
Automotive, Medical |
|
BA |
BA |
BA |
Bright |
2R |
0.02 ~ 0.1 ㎛ |
dazzling heat treatment performed after cold rolling |
Automotive, Home appliances, Kitchen utensils, Decorations, Construction |
|
HL |
HL |
HL |
ㅡ |
2M |
0.25 ~ 0.45 ㎛ |
Endless line scratched on the surface by abrasive |
Construction Exterior/Interior like door, panel |
|
DF |
ㅡ |
ㅡ |
ㅡ |
ㅡ |
0.6 ~ 2.5 ㎛ |
Embossing(EDM) rolled surface |
Construction Exterior/Interior, Home appliances, Mobile |
|
HD |
ㅡ |
ㅡ |
TR |
2H |
0.05 ~ 0.18 ㎛ |
Cold rolled materials classified with processing and hardening |
High hardness products, Spring, Railroad cars |
|
BF |
ㅡ |
ㅡ |
ㅡ |
ㅡ |
0.4 ~ 1.5 ㎛ |
Artificial short scratched surface |
Construction Exterior/Interior, Automotive |
|
SF |
ㅡ |
ㅡ |
ㅡ |
ㅡ |
0.02 ㎛이하 |
Associated with roll ground by diamond film, a high gloss product |
Construction Exterior |
※ KS L6001 : The Korea standard for abrasive size
※ The producing process would be adjusted according to work condition & surface finish
Wide Slitter Line
Inspecting surface condition and size for upcoming process. Slitting materials into the width of goods for internal processes and products

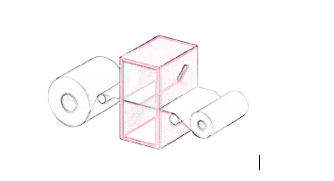

Coil Build Up
Coil Rolling
Cold rolling process with 18 rolls and tension on both reel by using hot coil for making high strength and precision product

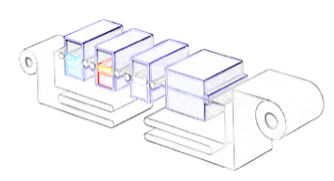

Annealing & Pickling
The process for giving unique surface of stainless steel by eliminating scale on surface and covering with passivity layer while heat treatment recovers modified internal structure of stainless steel.
Slitting
Final slitting process for ordered in width
Wide Slitter Line
Inspecting surface condition and size for upcoming process. Slitting materials into the width of goods for internal processes and products
Coil Build Up
Coil Rolling
Cold rolling process with 18 rolls and tension on both reel by using hot coil for making high strength and precision product
Annealing & Pickling
The process for giving unique surface of stainless steel by eliminating scale on surface and covering with passivity layer while heat treatment recovers modified internal structure of stainless steel

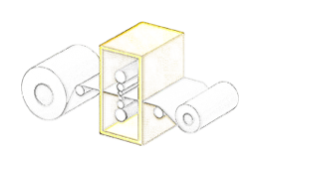

Skin Pass Rolling
Improving shape and giving gloss from former strip without difference in thickness
Slitting
Final slitting process for ordered in width
Wide Slitter Line
Inspecting surface condition and size for upcoming process. Slitting materials into the width of goods for internal processes and products
Coil Build Up
Coil Rolling
Cold rolling process with 18 rolls and tension on both reel by using hot coil for making high strength and precision product
Annealing & Pickling
The process for giving unique surface of stainless steel by eliminating scale on surface and covering with passivity layer while heat treatment recovers modified internal structure of stainless steel
Coil Rolling
Cold rolling process with 18 rolls and tension on both reel by using hot coil for making high strength and precision product

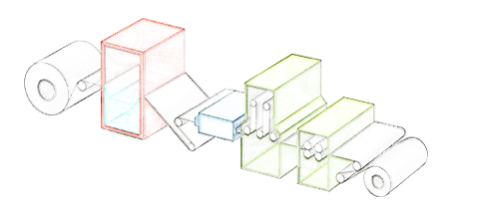

Degreasing/ Bright Annealing
Cleaning the surface of strip by using Alkali liquid (oil, foreign, carbide)

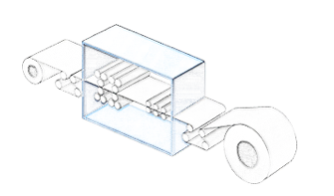

Tension Levelling
The process for giving flatness by strong tension in strip which was through cold rolling and heat treatment process
Slitting
Final slitting process for ordered in width
Wide Slitter Line
Inspecting surface condition and size for upcoming process. Slitting materials into the width of goods for internal processes and products
Coil Build Up
Coil Rolling
Cold rolling process with 18 rolls and tension on both reel by using hot coil for making high strength and precision product
Annealing & Pickling
The process for giving unique surface of stainless steel by eliminating scale on surface and covering with passivity layer while heat treatment recovers modified internal structure of stainless steel
Coil Rolling
Cold rolling process with 18 rolls and tension on both reel by using hot coil for making high strength and precision product

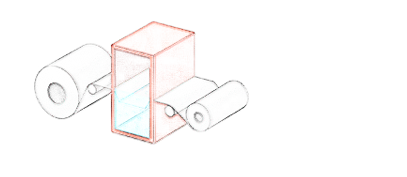

Degreasing
Cleaning the surface of strip by using Alkali liquid (oil, foreign, carbide)
Tension Levelling
The process for giving flatness by strong tension in strip which was through cold rolling and heat treatment process

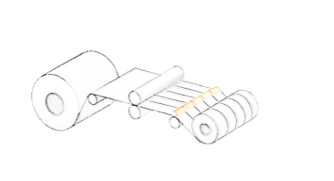

Slitting
Final slitting process for ordered in width

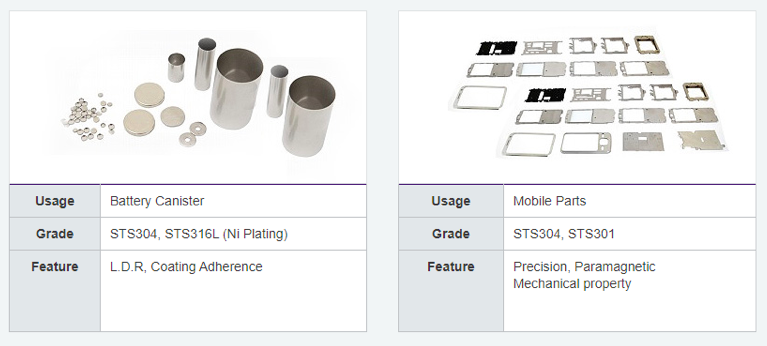

Electric & Electronic

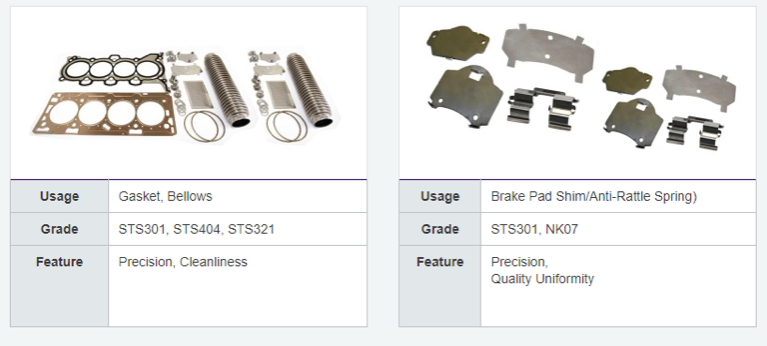

Automotive

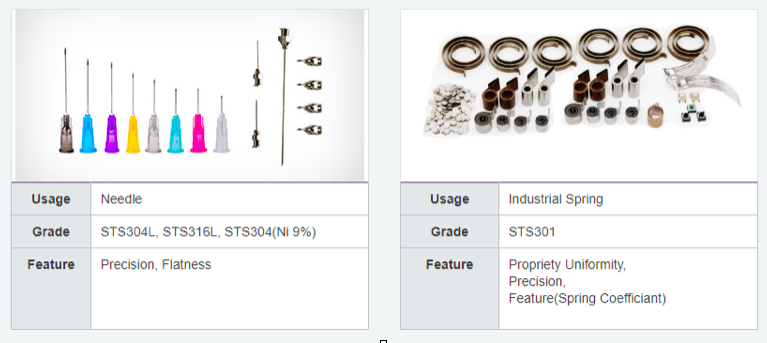

Medical Equipment & Other Industrial Materials
